PT10CR-2130 pressure transmitter is an economical pressure transmitter developed by our company for OEM customers and equipment. This product has the characteristics of small size, light weight, high stability, corrosion resistance, impact resistance, vibration resistance, etc. It is especially suitable for applications in air compressors, commercial air conditioners and general industrial pressure measurement and control.
? Compact size, light weight
? Strong corrosion resistance and wear resistance
? Shock and vibration resistance
? Short circuit protection and reverse polarity protection
? High stability and reliability, cost-effective
| Range | 250kPa、400kPa、600kPa、1MPa、1.6MPa、2.5MPa、4MPa |
| Overpressure | 1.5 times FS |
| Pressure type | Gauge |
| Pressure connection | R1/4 male and G1/4 male |
| Accuracy | 1％FS |
| Operation Temp. | -20℃~80℃ |
| Storage Temp. | -40℃~125℃ |
| Power Supply | 8V~28V DC |
| Output Signal | 4mA~20mA DC(2-wire) |
| Load | ≤（U-8）/0.02Ω |
| Protection | IP65 |
| Electrical connection | 3 pin Packard Plug |
| Long-term Stability | ＜±0.5%FS/year |
| Housing | Stainless Steel |
| Sensor | Ceramics |
| Connector shell | Plastic |

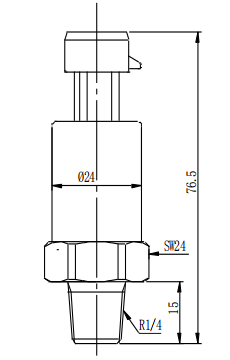

Unit: mm
| Order Guide | |||||
| PT10CR-2130 | Pressure Transmitter | ||||
| Range | 250kPa、400kPa、600kPa、1MPa、1.6MPa、2.5MPa、4MPa | ||||
| [0~X]kPa or MPa | X: Actual measurement range | ||||
| Code | Output Signal | ||||
| E | 4mA~20mA DC | ||||
| Code | Pressure Port | ||||
| C15 | R1/4 male | ||||
| C2 | G1/4 male | ||||
| Code | Pressure Type | ||||
| G | Gauge | ||||
| PT10CR-2130 | [0~1.6]MPa | E | C2 | G | the whole spec. |
PT10CR-2130 pressure transmitter is especially suitable for applications in air compressors, commercial air conditioners and general industrial pressure measurement and control.
