LT10SR-210 is a fully sealed submersible liquid level transmitter, it is made by inserting high-stability and reliability OEM pressure sensor and high-precision circuit board into the stainless steel housing. Integrated construction and standard signal provide convenience for application on site and automatic control. The dedicated cable is connected to the transmitter housing, the transmitter can be immerged into the media that is compatible with its construction material for a long time.
LT10SR-210 liquid level transmitter has compact size, light weight and good stability; it can be used for water or liquid level measurement and control of medicine, metallurgy, electricity, mine, city water supply and drainage and hydrology, etc.
● Integrated construction, unnecessary to do outer adjustment;
● Sensor housing protection IP68, connection box protection IP65;
● Cost-effective, high reliability and stability;
● RoHS and ATEX approved;
● Explosion-proof product conforms to Exia II CT6 Ga standard.
| Range（FS） | 1，2，5，10，20，50，100，200mH?O | ||
| Overpressure | 1.5 times FS | ||
| Accuracy | ±0.5%FS | ||
| Long-term Stability | Range＞10mH?O；≤±0.2%FS/year | ||
| Range≤10mH?O；≤20mmH?O/year | |||
| Temp.error | Range | Zero | FS |
| ＞10mH?O | ≤±0.03%FS/℃ | ≤±0.05%FS/℃ | |
| ≤10mH?O | ≤±0.05%FS/℃ | ≤±0.05%FS/℃ | |
| Operation temp. | -10℃~70℃；-10℃~60℃ (Exia) | ||
| Storage temp. | -20℃~85℃ | ||
| Power Supply | 11~28V DC | 11~28V DC | 5V DC |
| Output Signal | 4mA~20mA DC (2-wire) | 0V~5V/10V DC (3-wire) | 0.5V~4.5V DC (3-wire) |
| Load | ≤(U-11)/0.02Ω (2-wire) | ≥10k (3-wire) | ≥10k (3-wire) |
| Protection | IP68 | ||
| Housing | Stainless steel 1Cr18Ni9Ti | ||
| O-ring | Fluororubber | ||
| Diaphragm | Stainless steel 316L | ||
| Rubber sleeve | NBR | ||
| Cable | φ7.5mm polyethylene cable | ||

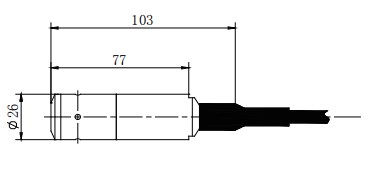

Unit: mm
| Order Guide | |||||||
| LT10SR-210 | Liquid Level Transmitter | ||||||
| Range | Measurement Range: 0m~1m...200mH?O | ||||||
| [0m~Xm H?O]L | X: Actual measurement range; L: Cable length; L-X=(1~2)m suggested | ||||||
| Code | Power Supply | ||||||
| V1 | 24V DC (default) | ||||||
| V6 | 5V DC | ||||||
| Code | Output Signal | ||||||
| E | 4mA~20mA DC | ||||||
| F | 1V~5V DC | ||||||
| J | 0V~5V DC | ||||||
| V | 0V~10V DC | ||||||
| K | 0.5V~4.5V DC | ||||||
| Code | Construction material | ||||||
| Diaphragm | Port | Housing | |||||
| 22 | SS 316L | SS | SS | ||||
| 24 | SS 316L | SS 316L | SS 316L | ||||
| 25 | Tantalum | SS | SS | ||||
| Code | Additional Function | ||||||
| M1 | 0%~100% indicator(Only for 4mA~20mA DC) | ||||||
| Yb | Aluminum connection box without display | ||||||
| Yc | MS200 water-proof connection box (default) | ||||||
| Yd | PD140 lightening-proof protection device | ||||||
| Ye | Connection box(with display or without display) | ||||||
| i | Intrinsic safe version Exia II CT6 Ga | ||||||
| y | ATEX | ||||||
| C1 | M20×1.5 male | ||||||
| C3 | G1/2 male | ||||||
| F1 | Fixed flange | ||||||
| LT10SR-210 | [0m~3m H?O]5 | V6 | E | 22 | Yc | the whole spec. | |
LT10SR-210 liquid level transmitter has compact size, light weight and good stability; it can be used for water or liquid level measurement and control of medicine, metallurgy, electricity, mine, city water supply and drainage and hydrology, etc.
