PT10SR-2489 General Pressure Transmitter

time：2020-11-30 browse：second

< >

Model：

overview：

PT10SR-2489 is a latest developed and cost-effective transmitter for general application,it is available to adjust zero and full span(FS) output. It is built by a high stable and reliable pressure sensor and special IC circuit. After completing the temperature range compensation and performance test, it could be widely applied in the industrial control, process monitoring, liquid pressure measurement and control in the field of Petroleum, Chemical industry, Electricity, Hydrology, Geology, ect.

main features
parameter
structure
selection
application

download

main features

· Reliable performance,Easy application

· Protection of short circuit and reversed polarity

· Gauge, Absolute and Sealed gauge measurable

· Intrinsic safety type product satisfies the requirements of Exia II CT6Ga of GB3836.4 standard

· Exd product conforms to the standard of GB3836.2, and Exd certificate is approved

· Reliable of CCS "Classification Rules of Steel Sea-going Vessel"(2006)

· CE, RoHS and ATEX approved

parameter

Pressure Range	-100kPa…0kPa～10kPa…100MPa
Over-Pressure	1.5 Times Full Span(FS) Pressure or 110MPa(min.)
Pressure Type	Gauge/Absolute/Sealed Gauge
Accuracy	≤±0.5％FS
Long-term Stability	Max. ±0.3%FS/Year
Zero Thermal Drift	≤±0.05%FS/℃(≤100kPa); ≤±0.03%FS/℃(＞100kPa)
Span Thermal Drift	≤±0.05%FS/℃(≤100kPa); ≤±0.03%FS/℃(＞100kPa)
Compensation Temp.	0℃～50℃
Operation Temp.	-30℃～80℃; -10℃~60℃(Exia); -20℃~60℃(Exd); -10℃~70℃(Cable)
Storage Temp.	-40℃～120℃; -20℃~85℃(Cable)
Power Supply	11V～28V DC(2-wire) 11V～28V DC(3-wire) 3.3V /5V DC(3-wire)
Output Signal	4mA～20mA DC(2- wire) 0/1V～5V/10V DC(3-wire); 0.5V～2.5V/4.5V DC(3-wire)
Load	≤(U-11)/0.02 (Ω) (2-wire); ≥10k(3-wire); ≥10k(3-wire)
Housing Protection	IP 65
Electrical Connection	DIN43650 Explosion-proof Connector or Cable(1.5m)
Construction Material
Housing	stainless steel 1Cr18Ni9Ti
Sealed-Ring	Fluororubber
Sensor Housing	stainless steel 1Cr18Ni9Ti
Plug Housing	Plastic
Diaphragm	stainless steel 316L
Cable	Φ7.5mm PE Special Cable

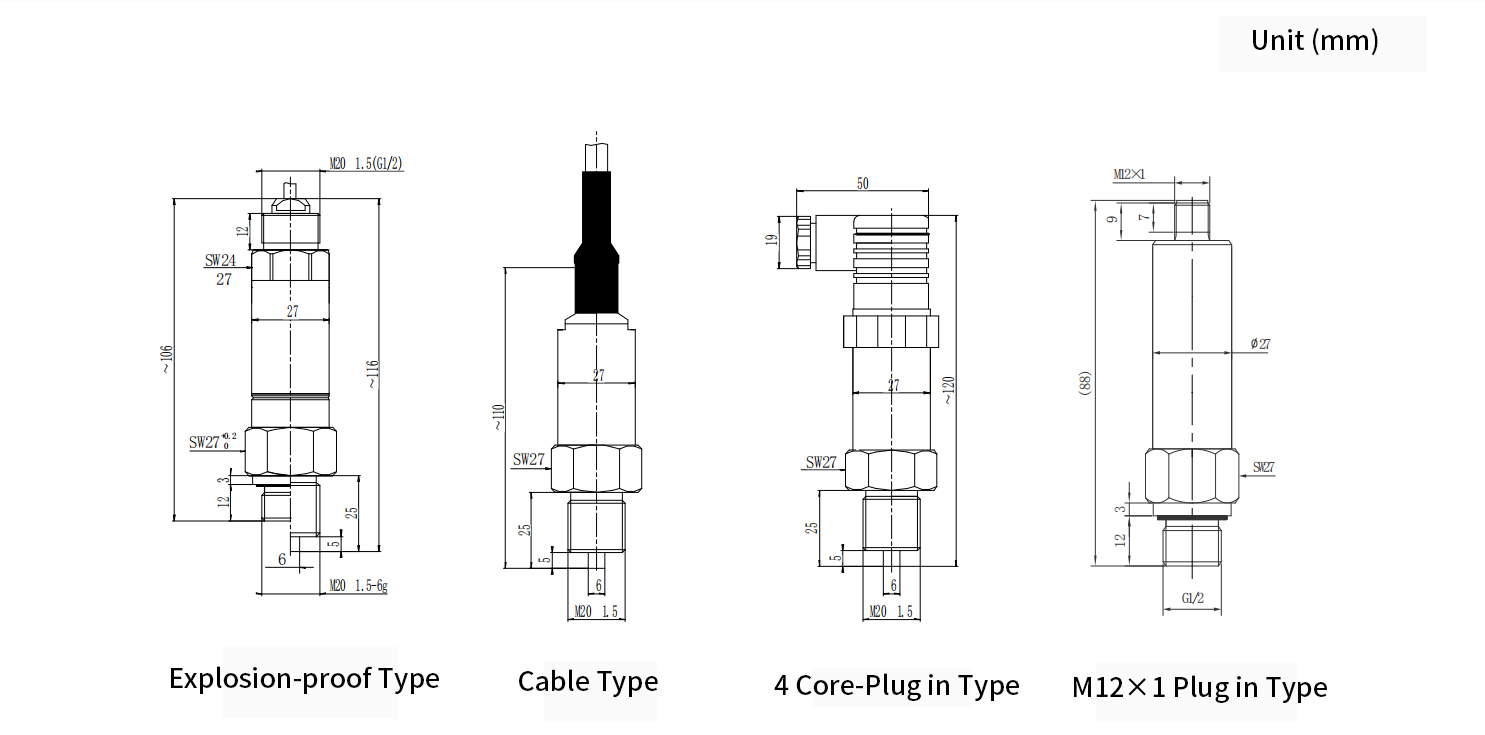

structure

selection

Order Guide

PT10SR-2489

Pressure Transmitter

Pressure Range

-100kPa…0kPa～10kPa…100MPa

[0～X]kPa or MPa

X：Actual Measurement Range

Code

Power Supply

24V DC(Default)

5V DC

3.3V DC

Code

Output signal

4mA～20mA DC

1V～5V DC

0V～5V DC

0V～10V DC

0.5V～2.5V DC

0.5V～4.5V DC

Code

Construction Material

Diaphragm

Port

Housing

SS 316L

Tantalum

Hastelloy

Code

Additional Function

4 Pin-Plug Connection

Cable-Connection

M12×1 4 Pin Plug

PC?

Flush diaphragm,M20×1.5 male

PC2

Flush diaphragm,R1/2 male

PC3

Flush diaphragm,G1/2 male

PD1

DN25 Clamp Connection
(Large diaphragm type)

DN25 Clamp Connection
(Welding type)

4 LED Digital Display
(only 4~20mA DC)

4 LCD Digital Display
(only 4~20mA DC)

Intrinsical safety explosion-proof type ExiaⅡCT6Ga

ATEX

Marine Product

Explosion-proof Exd II CT6Ga

M20×1.5 male, Face type seal

G1/2 male (P Type suitable)

M20×1.5 male, Waterline seal

Gauge

Absolute

Sealed Gauge

PT10SR-2489

[0～100]kPa

B1C5G

Completed P/N

application

It could be widely applied in the industrial control, process monitoring, liquid pressure measurement and control in the field of Petroleum, Chemical industry, Electricity, Hydrology, Geology, ect.
