    Micro-fusion Pressure Transmitter Pressure Sensor

    time:2020-11-25 browse:second

    Micro-fusion Pressure Transmitter Pressure Sensor
    < >
    • Micro-fusion Pressure Transmitter Pressure Sensor
    Model:
    overview:

    PT10SR-2511 pressure transmitter has the pressure chamber which is made of single complete stainless steel piece, and all-metal sealing structure. The transmitter uses micro-fusion technology and has specially designed structure. It adopts the overall digital calibration and temperature compensation This transmitter can meet the OEM customers' large volume demand and is highly cost efficient. It can be widely used in air pressure, hydraulic, and even worse media measuring environment, such as sewage, steam, light corrosive gases and liquids and other industrial or civil field pressure monitoring. Special customized products for users are also available.

    • main features
    • parameter
    • structure
    • selection
    • application
    • download
    main features

    No

    Item

    Data

    1

    Pressure Range

     0kPa~700kPa…100MPa

    2

    Over pressure

     2×FS(max.150MPa)

    3

    Burst pressure

    5×FS(max.200MPa)

    4

    Power Supply

     8V~28V DC or 5V DC

    5

    Output signal

    4mA~20mA DC, 0.5V~4.5V DC

    6

    Accuracy

     1.0 rating

    7

    Compensation temperature

    -10℃~80℃

    8

    Working temperature

    -40℃~125℃

    9

    Storage Temperature

     -40℃~125℃

    10

    Medium compatibility

    all mediums that are compatible with 17-4PH stainless steel


    parameter
    Pressure  Range-0.1MPa…0MPa~0.01MPa…160MPa(G)      0MPa~0.025MPa…60MPa(A)
    Over-Pressure200%FS(≤10MPa)        150%FS(Others)
    Ultimate Pressure400%FS(≤10MPa)         200%FS(Others)
    MediaLiquid or Gas which is compatible with stainless steel
    Power Supply10~30V DC,24V DC suggested
    Output Signal 4mA~20mA DC (2-wire)
    Load  RL≤(U-10)/0.02 (Ω)
    Accuracy ±0.25%FS、±0.5%FS
    Temperature Coefficient ≤±0.03%FS/℃
    Long-term stability ≤±0.5%FS/year
    Environment temp. -40℃ ~+80℃
    Media temp. -40℃ ~+150℃
    Load  ≤(U-11)/0.02 (Ω) (2-wire);  ≥10k(3-wire);  ≥10k(3-wire)
    Relative Humidity  0~90%RH
    Protection  IP65
    Frequency Response   >1kHz
    Insulation  100MΩ, 50VDC
    Pressure port and housing  Stainless steel 1Cr18Ni9Ti
    Electrical Connection  Hirschmann plug

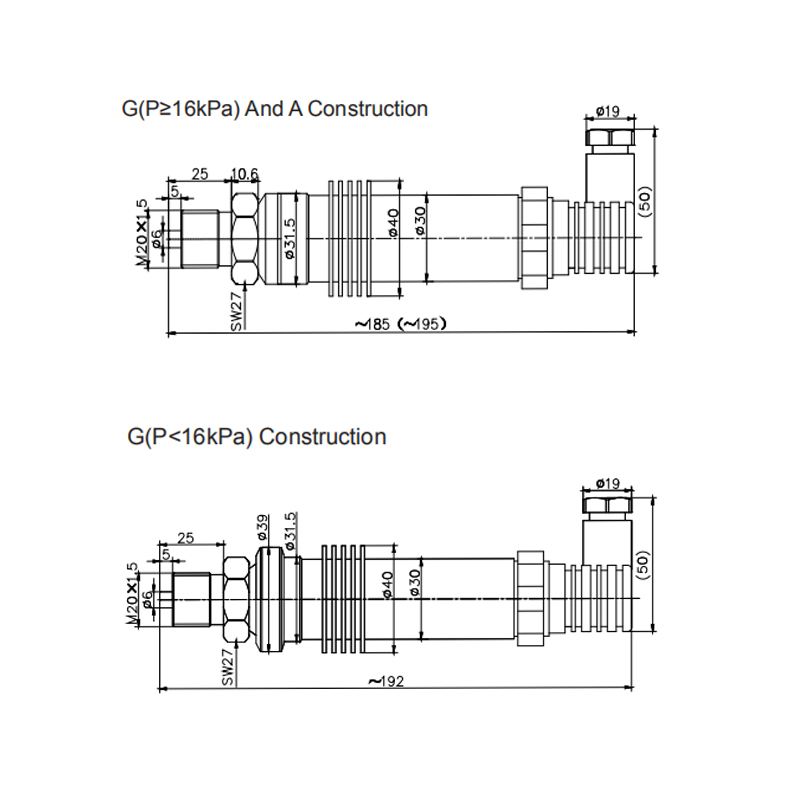

    structure


    selection

    No

    Item

    Data

    1

    Pressure Range

     0kPa~700kPa…100MPa

    2

    Over pressure

     2×FS(max.150MPa)

    3

    Burst pressure

    5×FS(max.200MPa)

    4

    Power Supply

     8V~28V DC or 5V DC

    5

    Output signal

    4mA~20mA DC, 0.5V~4.5V DC

    6

    Accuracy

     1.0 rating

    7

    Compensation temperature

    -10℃~80℃

    8

    Working temperature

    -40℃~125℃

    9

    Storage Temperature

     -40℃~125℃

    10

    Medium compatibility

    all mediums that are compatible with 17-4PH stainless steel


    application

    The transmitter is widely used for high and low temperature measurement and control of Food, Medicine, Power station,Machinery, Automobile,Shipbuilding, Petroleum, Chemical industry,Metallurgy, Steam and Heat exchanging, Aviation, Spaceflight, and Scientific research and Laboratory instrument, etc.
